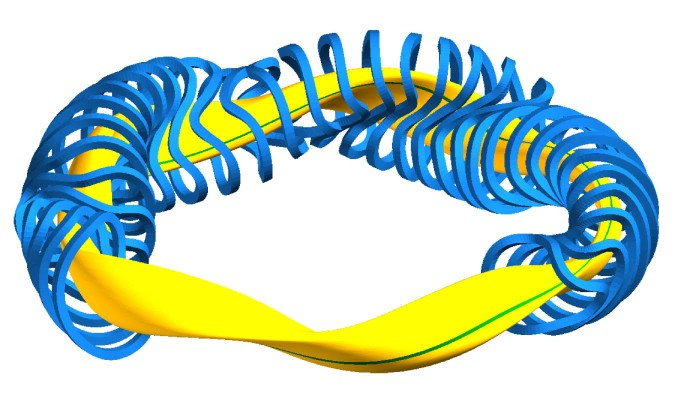

Coil system of the Wendelstein 7-X

Fifty non-planar and twenty planar coils form the twisted magnetic field which guides the plasma in the interior of the vessel.
